XTS35 Extruder

The XTS35 is a midsized Twin Screw Extruder in the XTS range, making this model versatile for either laboratory or production purposes. This XTS35 is most effective as a laboratory twin screw extruder when high free volume is necessary, or as a low scale production twin screw extruder particularly for specialty products.

Barrels come in standard lengths of 24D and in 6D increments up to 54L/D for more complex applications.

All XTS twin screw extruders have been designed to pair seamlessly with an XTS cooling system. The XTDC3 Drum Cooler offers compact and efficient cooling, with an output of approximately 350kg per hour.


  • Features
    • High free volume coupled with high power enhances flexibility in speed, residence time and output.
    • Clamshell barrel which allows essential access to the screws and shafts.
    • Individually controlled heating zones (3D or 6D) for more control over your process.
    • A split stuffing box gives quick access to shafts during removal and refitting.
    • Oil impregnated brass split bushes to stop the material from flowing backwards towards your gearbox.
    • Segmented Xtra Volume Screw Elements to optimise the feeding of fines and low bulk density formulations.
    • An industry proven gearbox from PIV to ensure reliability of high torque transmission.
    • Insert liners which are cost effective to replace and can be made from wear resistant materials.
    • Torque limiter coupling to protect the gearbox, shafts, and screws.
    • Super robust backing blocks with excellent control over heating and cooling.
    • AC Water-cooled motor offers highly efficient torque transmission and low maintenance.
    • PLC controlled with operator friendly HMI screens.
  • Data
    • Typical Max Output: 300kg/h
    • Average output: 220kg/h
    • Motor Power: 26/35 kW
    • Max Torque: 139 Nm per shaft
    • Standard Operating Temp: 250°C (450°C available on request)
    • Screw Speed: 900/1200rpm
  • Dimensions
    • Barrel length: 24 – 54 L/D
    • Length: 2383mm (Dependent on barrel length)
    • Height: Varies dependent on individual requirements
    • Width: 980mm

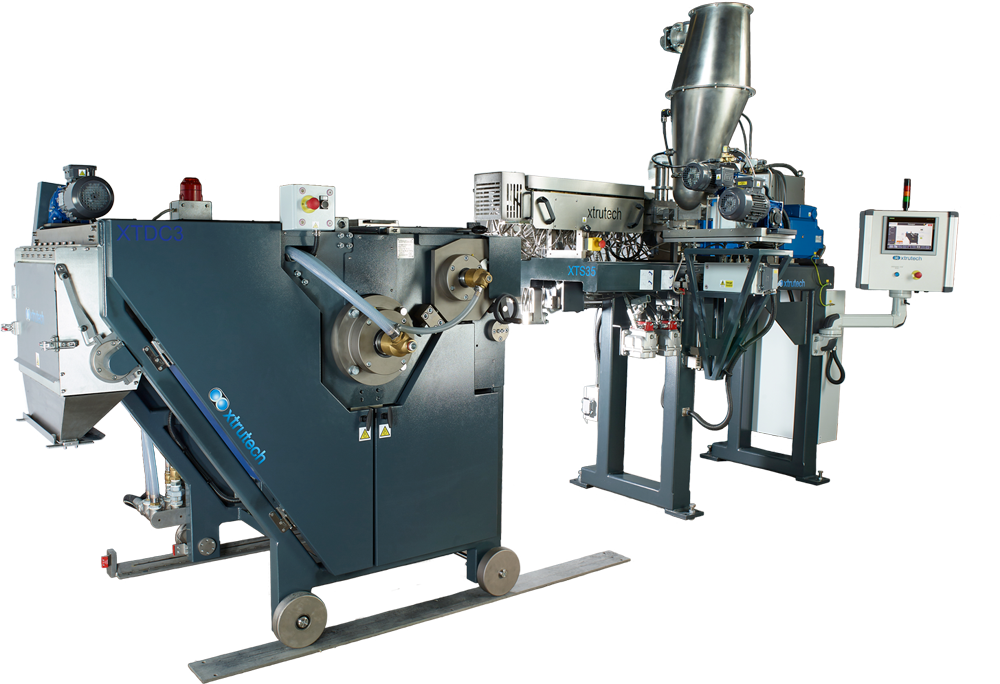

  • Build a Seamlessly integrated Twin Screw Extruder Line
