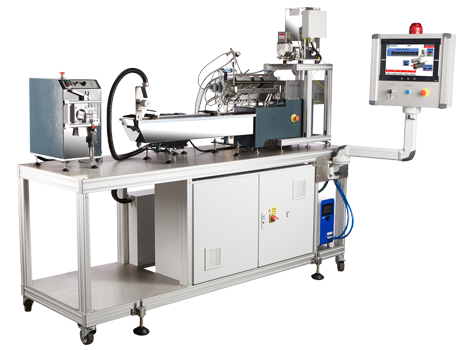

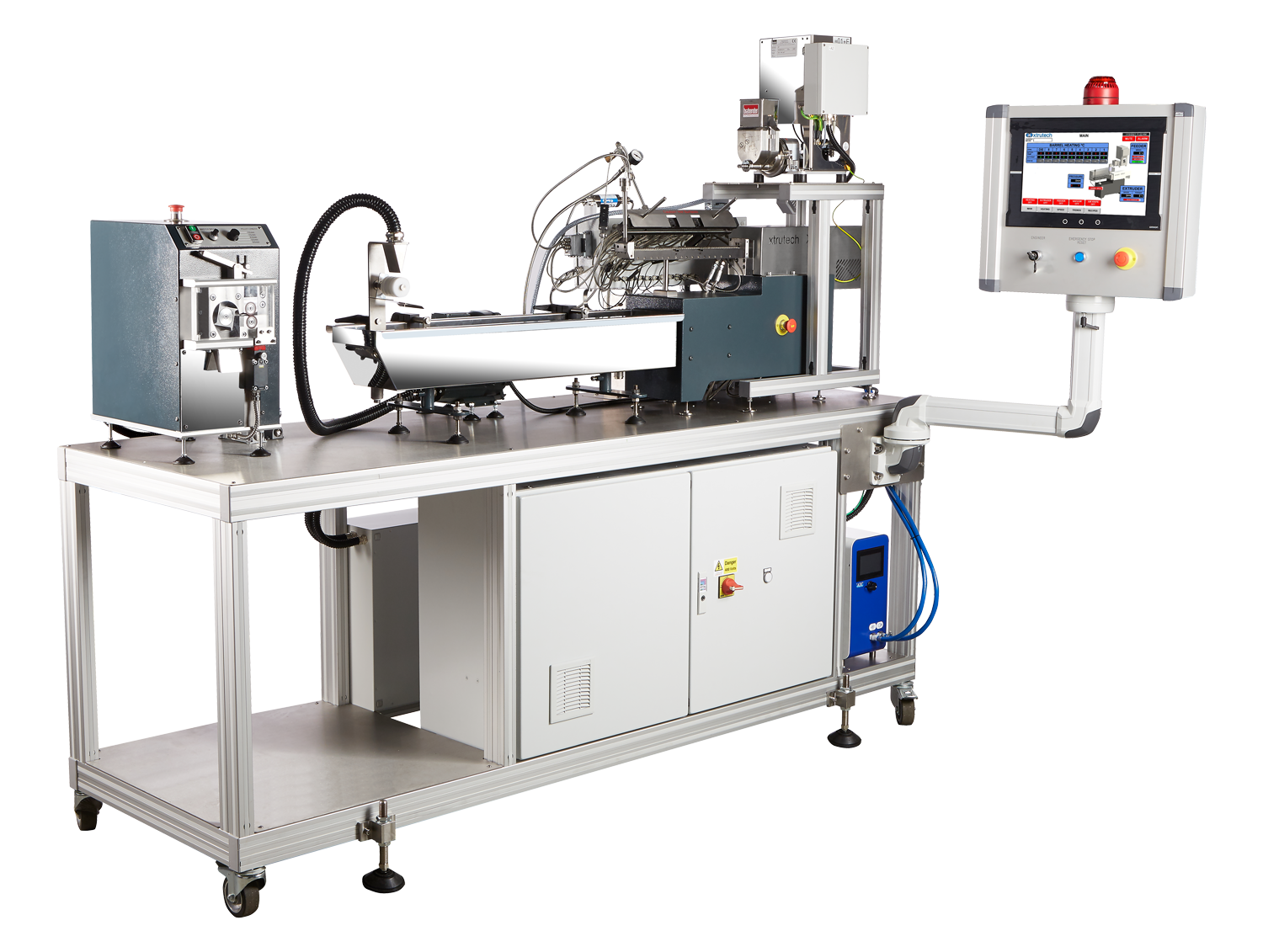

XTS11 Laboratory Twin Screw Extruder

The XTS11 is the smallest Twin Screw Extruder in the XTS range and is ideal for sampling and R&D purposes. This Twin Screw Extruder is particularly well suited to pharmaceutical applications and small batch testing. Additionally, for high value or sensitive materials the XTS11 can run at very low throughput.

  • Features
    • Clamshell barrel for quick cleaning and maintenance.
    • Insert liners which can be made from wear or corrosion resistant materials.
    • Segmented screw elements for easy maintenance.
    • Individually controlled heating zones (3D or 6D).
    • PLC controls with operator-friendly HMI screens.
    • Liquid injection which can add solvent, liquids, and oils to the formulations.
  • Optional Extras
    • Side Feeders – for highly filled products and temperature/sheer sensitive products and materials.
    • Liquid Feeders – low and high viscosity, with range of pump types (gear, peristaltic, syringe & piston).
    • Vacuum cabinets or enclosures to contain volatile organic compounds, toxic dust, and fumes.
    • Nitrogen Purge for Feeders.
    • Data Capture – (RPM, torque, set points vs actuals, throughput).
    • Volumetric or Gravimetric (LIW/loss-in-weight) Feeders.
    • Laboratory Ancillaries
  • Data
    • Motor Power: 0.6 kW
    • Screw Speed: 600 rpm
    • Average output: Outputs as low as 50 gram/h (depending on product type)
    • Maximum Torque: Torque per screw is 4.25Nm
    • Maximum output: Up to 500g/h (depending on product)
    • Standard Operating Temp: 250°C (450°C available on request)
  • Dimensions
    • Barrel length: 40 L/D
    • Length: 1800mm (including table)
    • Height: 1781mm (including hopper)
    • Width: 800 mm
